H3 is a hierarchy: each drop in resolution aggregates ~7 child
hexagons into a parent. Summarizing OBIS with the same query at
different H3 resolutions therefore trades spatial
detail against per-cell sample size and
query cost. This article walks those trade-offs and the
choices they force in the h3t serving design — especially
for the live children-taxa and SPUE paths from vignette("taxon_children").
It also produces Tables 2, 3 and 5 and Figure 3 of the OBIS → H3 → EOV
manuscript.
library(obisindicators)
library(dplyr)
library(ggplot2)
# the store named by OBIS_H3_DUCKDB; paper/build_demo_store.R builds a regional demo
con <- obis_store_connect()Precomputed. The store is not available where this documentation is built, so the chunks below were run locally by
data-raw/precompute_articles.Rand their output committed. This render used obis_h3_global_v20260728.duckdb, the global store. The manuscript’s numbers come from the global store.
What the store holds (Table 2)
obis_store_stats() summarizes the layers of a store: the
species-level occ_h3 counts at resolution tiers 3/5/7, the
precomputed all-taxa idx_h3, per-coarse-rank
idx_h3_taxon and per-EOV idx_h3_eov indicator
layers (resolutions 1–7), and the WoRMS taxon table that
makes any-rank filters possible.
s <- obis_store_stats(con)
knitr::kable(s$totals, caption = "Totals")| metric | value |
|---|---|
| records | 127329658 |
| species | 164336 |
| aphiaids | 167416 |
| cells_base | 3792953 |
| year_min | 1103 |
| year_max | 2026 |
| taxon_rows | 1571870 |
| eov_members | 135388 |
| database_size | 4.0 GiB |
knitr::kable(s$tables, caption = "Tables and row counts")| table | rows |
|---|---|
| eov | 135388 |
| idx_h3 | 6481134 |
| idx_h3_eov | 7138315 |
| idx_h3_taxon | 44216189 |
| occ_h3 | 58889539 |
| taxon | 1571870 |
knitr::kable(
s$cells_by_res |> mutate(area_km2 = round(area_km2), edge_km = round(edge_km, 1)),
caption = "Occupied cells by H3 resolution")| res | n_cells | records | area_km2 | edge_km |
|---|---|---|---|---|
| 1 | 842 | 127329658 | 609788 | 483.1 |
| 2 | 5799 | 127329658 | 86802 | 182.5 |
| 3 | 36893 | 127329658 | 12393 | 69.0 |
| 4 | 182038 | 127329658 | 1770 | 26.1 |
| 5 | 657311 | 127329658 | 253 | 9.9 |
| 6 | 1805298 | 127329658 | 36 | 3.7 |
| 7 | 3792953 | 127329658 | 5 | 1.4 |
Cells vs. density across resolution (Fig. 3a)
Take one taxon — all Cetacea (AphiaID 2688, an infraorder, so not a
Darwin Core rank column; see vignette("taxon_children"))
— and summarize it at every stored resolution. As resolution rises, the
cell count climbs roughly ×7 per step while the median records-per-cell
falls: the signal spreads thinner, and the fraction of cells that can
support ES(50) (at least 50 records) collapses.
calc_scale_curves(con, res = 1:7, aphiaid = 2688L, group = "Cetacea") |>
select(res, n_cells, median_n, frac_eligible, median_es) |>
mutate(frac_eligible = round(frac_eligible, 3), median_es = round(median_es, 2))
#> res n_cells median_n frac_eligible median_es
#> 1 1 702 109 0.623 5.00
#> 2 2 3507 16 0.286 5.24
#> 3 3 14973 5 0.111 5.23
#> 4 4 49968 2 0.053 4.56
#> 5 5 105334 1 0.035 3.96
#> 6 6 198771 1 0.021 3.12
#> 7 7 340290 1 0.012 2.41calc_scale_curves() does the same for any filter. Here
it is for all taxa and for each of the seven Essential Ocean Variables
(EOVs; see vignette("eov")):
RES <- 1:7
sc <- bind_rows(
calc_scale_curves(con, res = RES, group = "all taxa"),
bind_rows(lapply(EOV_ORDER, function(e)
calc_scale_curves(con, res = RES, eov = e, group = e))))
sc |>
select(group, res, n_cells, frac_cells_all, median_n, frac_eligible, median_es, median_sp) |>
mutate(across(c(frac_cells_all, frac_eligible), ~ round(.x, 3)), median_es = round(median_es, 2))
#> group res n_cells frac_cells_all median_n frac_eligible median_es
#> 1 all taxa 1 842 1.000 10427.5 0.986 31.93
#> 2 all taxa 2 5799 1.000 707.0 0.847 25.84
#> 3 all taxa 3 36893 1.000 65.0 0.542 21.59
#> 4 all taxa 4 182038 1.000 13.0 0.289 20.45
#> 5 all taxa 5 657311 1.000 5.0 0.149 21.87
#> 6 all taxa 6 1805298 1.000 2.0 0.099 19.96
#> 7 all taxa 7 3792953 1.000 2.0 0.066 16.00
#> 8 fish 1 830 0.986 947.0 0.836 29.64
#> 9 fish 2 4912 0.847 71.0 0.555 25.47
#> 10 fish 3 21481 0.582 17.0 0.345 21.99
#> 11 fish 4 66094 0.363 10.0 0.269 20.43
#> 12 fish 5 170687 0.260 8.0 0.240 18.43
#> 13 fish 6 391413 0.217 7.0 0.197 15.13
#> 14 fish 7 740349 0.195 6.0 0.147 11.52
#> 15 hardCorals 1 472 0.561 82.5 0.574 20.72
#> 16 hardCorals 2 1391 0.240 25.0 0.411 18.76
#> 17 hardCorals 3 3556 0.096 11.0 0.283 17.27
#> 18 hardCorals 4 7793 0.043 7.0 0.181 15.83
#> 19 hardCorals 5 14349 0.022 4.0 0.123 15.62
#> 20 hardCorals 6 22318 0.012 3.0 0.101 15.29
#> 21 hardCorals 7 31520 0.008 3.0 0.086 14.77
#> 22 mangroves 1 78 0.093 10.0 0.295 5.27
#> 23 mangroves 2 126 0.022 10.5 0.333 4.01
#> 24 mangroves 3 235 0.006 15.0 0.366 3.84
#> 25 mangroves 4 447 0.002 18.0 0.374 3.76
#> 26 mangroves 5 968 0.001 15.0 0.294 3.00
#> 27 mangroves 6 2208 0.001 10.0 0.137 2.54
#> 28 mangroves 7 5547 0.001 5.0 0.026 2.88
#> 29 marineMammals 1 730 0.867 212.0 0.718 4.08
#> 30 marineMammals 2 3884 0.670 33.0 0.433 3.00
#> 31 marineMammals 3 18589 0.504 8.0 0.263 2.00
#> 32 marineMammals 4 73360 0.403 4.0 0.127 2.00
#> 33 marineMammals 5 217692 0.331 3.0 0.043 2.03
#> 34 marineMammals 6 589527 0.327 2.0 0.015 2.00
#> 35 marineMammals 7 1183783 0.312 1.0 0.006 1.89
#> 36 seabirds 1 817 0.970 867.0 0.814 13.91
#> 37 seabirds 2 5058 0.872 84.0 0.570 11.16
#> 38 seabirds 3 26361 0.715 17.0 0.349 10.54
#> 39 seabirds 4 112475 0.618 6.0 0.153 11.07
#> 40 seabirds 5 379397 0.577 2.0 0.079 10.36
#> 41 seabirds 6 911344 0.505 2.0 0.054 8.77
#> 42 seabirds 7 1750076 0.461 1.0 0.031 8.04
#> 43 seagrasses 1 220 0.261 57.0 0.514 5.29
#> 44 seagrasses 2 544 0.094 19.0 0.344 4.57
#> 45 seagrasses 3 1133 0.031 11.0 0.256 4.19
#> 46 seagrasses 4 2122 0.012 8.0 0.205 4.00
#> 47 seagrasses 5 3975 0.006 6.0 0.155 4.00
#> 48 seagrasses 6 7261 0.004 4.0 0.115 3.81
#> 49 seagrasses 7 12420 0.003 4.0 0.078 3.55
#> 50 seaTurtles 1 539 0.640 40.0 0.464 2.60
#> 51 seaTurtles 2 2631 0.454 8.0 0.219 1.79
#> 52 seaTurtles 3 10772 0.292 2.0 0.098 1.00
#> 53 seaTurtles 4 25130 0.138 2.0 0.030 1.21
#> 54 seaTurtles 5 56528 0.086 2.0 0.011 1.97
#> 55 seaTurtles 6 102901 0.057 1.0 0.004 1.00
#> 56 seaTurtles 7 152272 0.040 1.0 0.003 1.00
#> median_sp
#> 1 554.5
#> 2 80.0
#> 3 15.0
#> 4 4.0
#> 5 2.0
#> 6 1.0
#> 7 1.0
#> 8 109.5
#> 9 20.0
#> 10 7.0
#> 11 4.0
#> 12 4.0
#> 13 4.0
#> 14 4.0
#> 15 12.0
#> 16 6.0
#> 17 3.0
#> 18 2.0
#> 19 2.0
#> 20 1.0
#> 21 1.0
#> 22 3.5
#> 23 3.0
#> 24 3.0
#> 25 3.0
#> 26 2.0
#> 27 2.0
#> 28 2.0
#> 29 6.0
#> 30 2.0
#> 31 2.0
#> 32 1.0
#> 33 1.0
#> 34 1.0
#> 35 1.0
#> 36 27.0
#> 37 9.0
#> 38 4.0
#> 39 2.0
#> 40 1.0
#> 41 1.0
#> 42 1.0
#> 43 5.0
#> 44 3.0
#> 45 2.0
#> 46 2.0
#> 47 2.0
#> 48 2.0
#> 49 2.0
#> 50 2.0
#> 51 1.0
#> 52 1.0
#> 53 1.0
#> 54 1.0
#> 55 1.0
#> 56 1.0

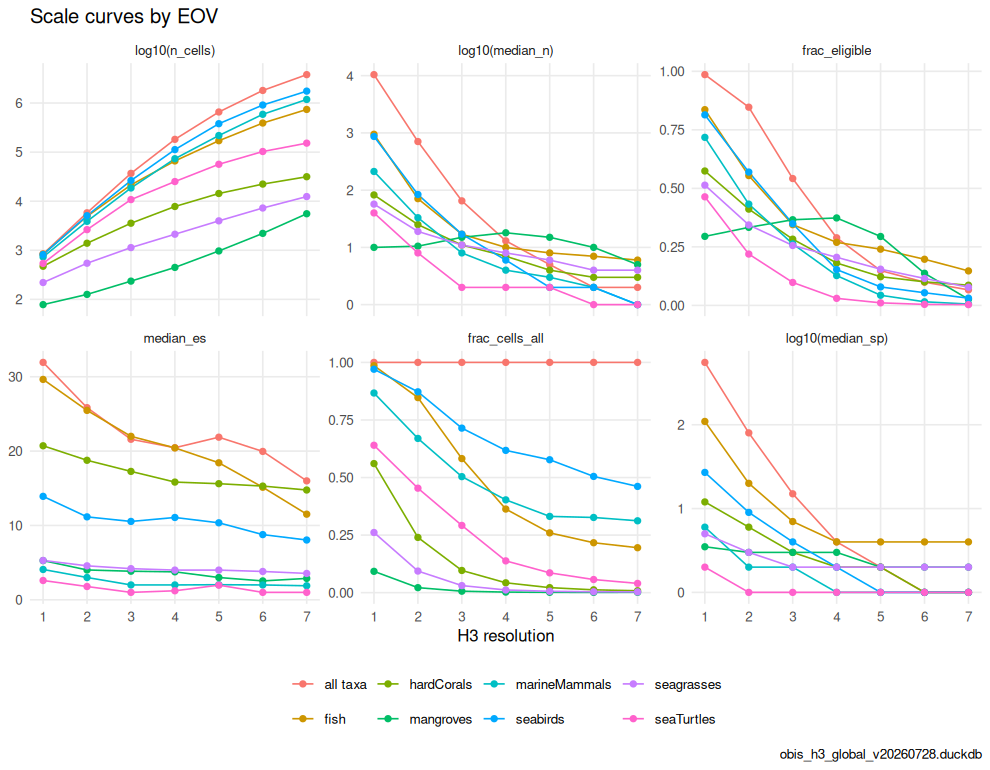

p <- plot_scale_curves(
sc,
metrics = c("n_cells", "median_n", "frac_eligible", "median_es", "frac_cells_all", "median_sp"),
log_y = c("n_cells", "median_n", "median_sp")) +
labs(title = "Scale curves by EOV", caption = store_label)
p
plot of chunk fig3a
The store keeps species-level occ_h3 at only three tiers
(3 / 5 / 7); a query at res 1–2 rolls up from tier 3, res 4 from tier 5,
res 6 from tier 7 (see obis_h3t_sql()). Rolling up
is cheap; the expense is the base-tier scan.
Precomputed vs. live query cost (Table 5)
Unfiltered and coarse-rank (phylum/class/order) indicators are
precomputed into idx_h3 /
idx_h3_taxon (one row per cell, res 1–7), and each EOV into
idx_h3_eov — all served with a plain indexed lookup at any
resolution. The children-taxa (aphiaid=) and SPUE paths
have no precomputed layer: they aggregate occ_h3
live, resolving the WoRMS subtree with a recursive CTE
on each request.
obis_bench_queries() builds the four paths a tile can
take — precomputed all-taxa, precomputed EOV, live EOV subtree over
occ_h3, and the SPUE effort proxy (two recursive subtrees)
— and obis_bench() times them. Cold = first run; warm =
median of 3 repeats, which is what the Varnish-fronted service sees
after the first viewer.
q <- obis_bench_queries(res = c(3L, 5L, 7L), eov = "fish",
num_aphiaid = 137092L, den_aphiaid = 2688L) # humpback / Cetacea
b <- obis_bench(con, q, reps = 3L) |>
mutate(path = sub(" res \\d$", "", label),
res = as.integer(sub(".* res (\\d)$", "\\1", label)))
knitr::kable(
b |> select(path, res, rows, cold_s, warm_s) |> mutate(across(c(cold_s, warm_s), ~ round(.x, 3))),
caption = "Query latency by serving path (seconds)")| path | res | rows | cold_s | warm_s |
|---|---|---|---|---|
| idx_h3 all-taxa ES50 | 3 | 36893 | 0.005 | 0.004 |
| idx_h3_eov fish ES50 | 3 | 21481 | 0.005 | 0.005 |
| live subtree fish ES50 | 3 | 21481 | 1.234 | 1.070 |
| SPUE 137092/2688 | 3 | 14973 | 0.371 | 0.368 |
| idx_h3 all-taxa ES50 | 5 | 657311 | 0.022 | 0.020 |
| idx_h3_eov fish ES50 | 5 | 170687 | 0.010 | 0.007 |
| live subtree fish ES50 | 5 | 170687 | 2.430 | 2.334 |
| SPUE 137092/2688 | 5 | 105334 | 0.730 | 0.711 |
| idx_h3 all-taxa ES50 | 7 | 3792953 | 0.107 | 0.106 |
| idx_h3_eov fish ES50 | 7 | 740349 | 0.016 | 0.015 |
| live subtree fish ES50 | 7 | 740349 | 4.155 | 3.952 |
| SPUE 137092/2688 | 7 | 340290 | 1.026 | 1.022 |

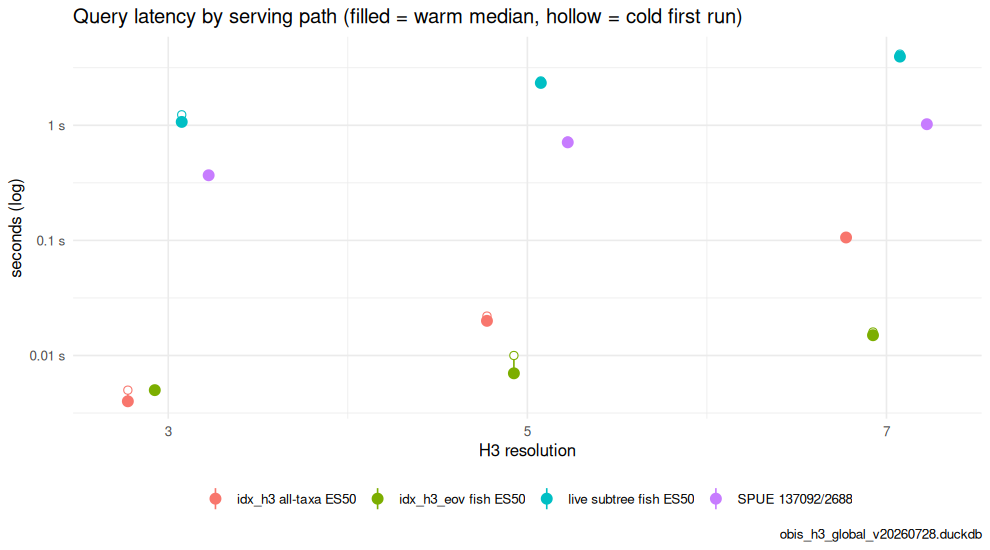

p <- ggplot(b, aes(x = res, y = warm_s, color = path)) +
geom_linerange(aes(ymin = warm_s, ymax = cold_s), position = position_dodge(width = .6), linewidth = .5) +
geom_point(aes(y = cold_s), position = position_dodge(width = .6), shape = 21, fill = "white", size = 2.2) +
geom_point(position = position_dodge(width = .6), size = 3) +
scale_x_continuous(breaks = unique(b$res)) +
scale_y_log10(labels = function(x) paste0(x, " s")) +
labs(x = "H3 resolution", y = "seconds (log)", color = NULL,
title = "Query latency by serving path (filled = warm median, hollow = cold first run)",
caption = store_label) +
theme_minimal(base_size = 11) + theme(legend.position = "bottom")
p
plot of chunk tab5
Live cost grows with (a) the breadth of the subtree (a class resolves
tens of thousands of descendants) and (b) the base-tier row count at
fine resolution. The server caps a single statement at
H3T_STMT_TIMEOUT_MS (8 s); a broad taxon at res 7 on the
global store can approach it.

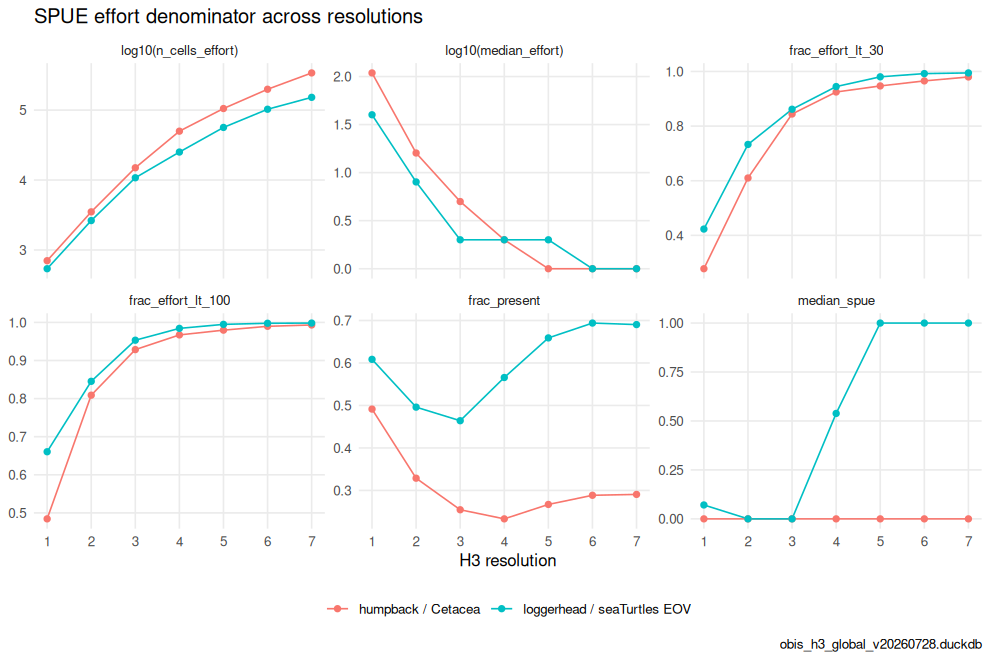

The SPUE denominator gets sparse (Fig. 3b)
The effort proxy divides by the denominator (effort-taxon
records per cell). That denominator thins with resolution faster than
intuition suggests: a ratio of 1/1 and 30/60 both render, but only the
latter is trustworthy. calc_spue_scale() tracks the number
of effort cells, the median effort, and the fraction of cells whose
effort falls below a reliability floor, across resolutions. Two case
studies: humpback whale over all Cetacea (multi-species cetacean
surveys), and loggerhead turtle over the sea-turtles EOV.
cases <- tribble(
~group, ~num, ~den,
"humpback / Cetacea", 137092L, 2688L,
"loggerhead / seaTurtles EOV", 137205L, obis_eov_aphiaid("seaTurtles"))
ss <- bind_rows(lapply(seq_len(nrow(cases)), function(i)
calc_spue_scale(con, cases$num[[i]], cases$den[[i]], res = RES, group = cases$group[i])))
ss |> mutate(across(starts_with("frac_"), ~ round(.x, 3)), median_spue = round(median_spue, 3))
#> group res area_km2 n_cells_effort effort_records
#> 1 humpback / Cetacea 1 609788.442 702 2241724
#> 2 humpback / Cetacea 2 86801.780 3507 2241724
#> 3 humpback / Cetacea 3 12393.435 14973 2241724
#> 4 humpback / Cetacea 4 1770.348 49968 2241724
#> 5 humpback / Cetacea 5 252.904 105334 2241724
#> 6 humpback / Cetacea 6 36.129 198771 2241724
#> 7 humpback / Cetacea 7 5.161 340290 2241724
#> 8 loggerhead / seaTurtles EOV 1 609788.442 539 447633
#> 9 loggerhead / seaTurtles EOV 2 86801.780 2631 447633
#> 10 loggerhead / seaTurtles EOV 3 12393.435 10772 447633
#> 11 loggerhead / seaTurtles EOV 4 1770.348 25130 447633
#> 12 loggerhead / seaTurtles EOV 5 252.904 56528 447633
#> 13 loggerhead / seaTurtles EOV 6 36.129 102901 447633
#> 14 loggerhead / seaTurtles EOV 7 5.161 152272 447633
#> median_effort frac_present median_spue frac_effort_lt_10 frac_effort_lt_30
#> 1 109 0.491 0.000 0.168 0.278
#> 2 16 0.329 0.000 0.396 0.610
#> 3 5 0.254 0.000 0.692 0.844
#> 4 2 0.233 0.000 0.842 0.925
#> 5 1 0.267 0.000 0.875 0.947
#> 6 1 0.289 0.000 0.908 0.965
#> 7 1 0.291 0.000 0.937 0.980
#> 8 40 0.609 0.071 0.234 0.423
#> 9 8 0.496 0.000 0.555 0.733
#> 10 2 0.464 0.000 0.744 0.862
#> 11 2 0.566 0.538 0.792 0.945
#> 12 2 0.659 1.000 0.924 0.980
#> 13 1 0.694 1.000 0.968 0.992
#> 14 1 0.690 1.000 0.983 0.995
#> frac_effort_lt_100
#> 1 0.484
#> 2 0.809
#> 3 0.929
#> 4 0.967
#> 5 0.980
#> 6 0.990
#> 7 0.993
#> 8 0.660
#> 9 0.845
#> 10 0.953
#> 11 0.984
#> 12 0.995
#> 13 0.998
#> 14 0.998
p <- plot_scale_curves(
ss,
metrics = c("n_cells_effort", "median_effort", "frac_effort_lt_30",
"frac_effort_lt_100", "frac_present", "median_spue"),
log_y = c("n_cells_effort", "median_effort")) +
labs(title = "SPUE effort denominator across resolutions", caption = store_label)
p
plot of chunk fig3b
Design guidance
-
Prefer a precomputed layer where the filter is
knowable ahead of time. All-taxa, phylum/class/order and EOV maps hit
idx_h3/idx_h3_taxon/idx_h3_eovand are resolution-independent in cost. If another children-taxa filter is used heavily, precompute it the same way (obis_eov_bake()is the template). -
Cap
res_maxfor live paths. Serving a broad subtree at res 7 is the worst case;obis_h3t_sql(res_max = 5)keeps hexagons coarser (and the scan cheaper) at high zoom. -
Consider a descendant-closure table
(
ancestor_aphiaid → descendant_aphiaid) baked besidetaxon, turning the per-request recursive walk into a join — the natural next step if live children maps become hot. -
Read SPUE with its
n. Style the map byvaluebut gate trust on the effortn; at fine resolution most cells are low-effort. Aggregating to a coarser resolution (or a larger effort taxon) restores a usable denominator.
DBI::dbDisconnect(con, shutdown = TRUE)
