The GOOS / IOOS biology & ecosystems Essential Ocean Variables (EOVs) are defined taxonomically, and the IOOS Marine Life Data Network publishes that definition as root WoRMS AphiaIDs per EOV — 33 seeds across seven EOVs: fish, hard corals, mangroves, marine mammals, seabirds, seagrasses and sea turtles. That is exactly a multi-seed version of the subtree walk in vignette("taxon_children"), so an EOV map from the obis_h3 store is one query away. This article shows the definitions, the taxonomy coverage gap that silently empties EOVs unless it is closed, and the per-EOV maps — Table 4 and Figures 1–2 of the OBIS → H3 → EOV manuscript.

library(obisindicators)
library(dplyr)
library(ggplot2)

con <- obis_store_connect()   # the store named by OBIS_H3_DUCKDB

Precomputed. The store is not available where this documentation is built, so the chunks below were run locally by data-raw/precompute_articles.R and their output committed. This render used obis_h3_global_v20260728.duckdb, the global store; before/after comparisons use obis_h3_global_hp_v20260717.duckdb.

The definitions

obis_eov_seeds() returns the seed AphiaIDs per EOV; obis_eov_label() turns an EOV key into a readable label; obis_eov_aphiaid() gives the seeds to pass wherever an aphiaid filter is accepted.

knitr::kable(obis_eov_seeds(), caption = "EOV seed taxa (IOOS MLDN eov_taxonomy)")
EOV seed taxa (IOOS MLDN eov_taxonomy)
eov label desc aphiaid taxon rank
fish Fish All fishes: jawless, cartilaginous and bony. 1829 Agnatha Infraphylum
fish Fish All fishes: jawless, cartilaginous and bony. 1517375 Chondrichthyes Parvphylum
fish Fish All fishes: jawless, cartilaginous and bony. 152352 Osteichthyes Parvphylum
hardCorals Hard corals Reef-building stony corals. 1363 Scleractinia Order
mangroves Mangroves Mangrove trees, shrubs and the mangrove fern, as 19 genera plus one family. 235048 Combretaceae Family
mangroves Mangroves Mangrove trees, shrubs and the mangrove fern, as 19 genera plus one family. 235033 Avicennia Genus
mangroves Mangroves Mangrove trees, shrubs and the mangrove fern, as 19 genera plus one family. 234450 Nypa Genus
mangroves Mangroves Mangrove trees, shrubs and the mangrove fern, as 19 genera plus one family. 234495 Bruguiera Genus
mangroves Mangroves Mangrove trees, shrubs and the mangrove fern, as 19 genera plus one family. 235086 Ceriops Genus
mangroves Mangroves Mangrove trees, shrubs and the mangrove fern, as 19 genera plus one family. 235089 Kandelia Genus
mangroves Mangroves Mangrove trees, shrubs and the mangrove fern, as 19 genera plus one family. 235091 Rhizophora Genus
mangroves Mangroves Mangrove trees, shrubs and the mangrove fern, as 19 genera plus one family. 235106 Sonneratia Genus
mangroves Mangroves Mangrove trees, shrubs and the mangrove fern, as 19 genera plus one family. 235056 Excoecaria Genus
mangroves Mangroves Mangrove trees, shrubs and the mangrove fern, as 19 genera plus one family. 235060 Pemphis Genus
mangroves Mangroves Mangrove trees, shrubs and the mangrove fern, as 19 genera plus one family. 235045 Camptostemon Genus
mangroves Mangroves Mangrove trees, shrubs and the mangrove fern, as 19 genera plus one family. 235116 Heritiera Genus
mangroves Mangroves Mangrove trees, shrubs and the mangrove fern, as 19 genera plus one family. 235063 Xylocarpus Genus
mangroves Mangroves Mangrove trees, shrubs and the mangrove fern, as 19 genera plus one family. 235072 Osbornia Genus
mangroves Mangroves Mangrove trees, shrubs and the mangrove fern, as 19 genera plus one family. 235075 Pelliciera Genus
mangroves Mangroves Mangrove trees, shrubs and the mangrove fern, as 19 genera plus one family. 235077 Aegialitis Genus
mangroves Mangroves Mangrove trees, shrubs and the mangrove fern, as 19 genera plus one family. 235068 Aegiceras Genus
mangroves Mangroves Mangrove trees, shrubs and the mangrove fern, as 19 genera plus one family. 234488 Acrostichum Genus
mangroves Mangroves Mangrove trees, shrubs and the mangrove fern, as 19 genera plus one family. 235103 Scyphiphora Genus
marineMammals Marine mammals Seals & sea lions, whales & dolphins, and sirenians, plus four individually-listed carnivores (sea otter, marine otter, North American river otter, polar bear). 148736 Pinnipedia Infraorder
marineMammals Marine mammals Seals & sea lions, whales & dolphins, and sirenians, plus four individually-listed carnivores (sea otter, marine otter, North American river otter, polar bear). 2688 Cetacea Infraorder
marineMammals Marine mammals Seals & sea lions, whales & dolphins, and sirenians, plus four individually-listed carnivores (sea otter, marine otter, North American river otter, polar bear). 159502 Sirenia Order
marineMammals Marine mammals Seals & sea lions, whales & dolphins, and sirenians, plus four individually-listed carnivores (sea otter, marine otter, North American river otter, polar bear). 242598 Enhydra lutris Species
marineMammals Marine mammals Seals & sea lions, whales & dolphins, and sirenians, plus four individually-listed carnivores (sea otter, marine otter, North American river otter, polar bear). 477316 Lutra felina Species
marineMammals Marine mammals Seals & sea lions, whales & dolphins, and sirenians, plus four individually-listed carnivores (sea otter, marine otter, North American river otter, polar bear). 159017 Lontra canadensis Species
marineMammals Marine mammals Seals & sea lions, whales & dolphins, and sirenians, plus four individually-listed carnivores (sea otter, marine otter, North American river otter, polar bear). 137085 Ursus maritimus Species
seabirds Seabirds Class Aves entire - i.e. ALL birds, not a seabird-only subset. Against a marine-only snapshot that is a reasonable proxy, but it is a definitional choice made by the EOV list. 1836 Aves Class
seagrasses Seagrasses Order Alismatales, the marine flowering plants (also takes in some brackish/freshwater pondweeds). 153491 Alismatales Order
seaTurtles Sea turtles Marine turtles. 987094 Chelonioidea Superfamily
obis_eov_label("marineMammals")
#>                                            marineMammals
#> "Marine mammals (7 seed taxa: infraorder/order/species)"
obis_eov_aphiaid("seaTurtles")
#> [1] 987094

Why seeds-and-subtree rather than the Darwin Core rank columns: the rank a name occupies is not stable, so a class = <name> filter silently matches nothing when OBIS files the name elsewhere (Table 3 in vignette("taxon_children")). Subtree walking is rank-agnostic and immune.

obis_eov_sql() builds the tile SQL for an EOV. With one EOV and no year filter it routes to the precomputed idx_h3_eov layer (as fast as the all-taxa path); with years, several EOVs, or a store without the layer baked it falls back to the live subtree aggregation over occ_h3.

cat(obis_eov_sql("seaTurtles"))
#> SELECT cell_id, es AS value, n FROM idx_h3_eov WHERE eov = 'seaTurtles' AND res = LEAST({{res}}, 7)

obis_eov_bake() adds the two layers to a store: eov (membership: each EOV’s seeds expanded over taxon) and idx_h3_eov (indicators per EOV and resolution 1–7).

The taxonomy coverage gap

EOV membership is only as complete as the taxon table. The bulk WoRMS download is not a complete cover of the AphiaIDs OBIS carries — on the 2026-07 global store about 7% of distinct species-level AphiaIDs (8.3 M of 121.9 M records) were absent, notably algae, whose WoRMS records come from thematic databases the Darwin Core export lags. Every one of those is invisible to every subtree, EOV and SPUE query until obis_taxon_fill_gaps() supplements the bulk join with WoRMS REST lookups, to transitive closure.

obis_taxon_orphans() reports the gap on a store:

orph <- obis_taxon_orphans(con)
tibble(orphan_aphiaids = nrow(orph), orphan_records = sum(orph$records))
#> # A tibble: 1 × 2
#>   orphan_aphiaids orphan_records
#>             <int>          <dbl>
#> 1               0              0
head(arrange(orph, desc(records)), 10)
#> [1] taxonID records
#> <0 rows> (or 0-length row.names)

Totals per EOV (Table 4)

tot <- calc_eov_totals(con)
knitr::kable(
  tot |> mutate(across(c(records, species, cells), ~ format(.x, big.mark = ",")),
                pct_records = round(pct_records, 2)),
  caption = "Records, species and occupied cells per EOV")
Records, species and occupied cells per EOV
eov label records species cells pct_records
fish Fish 49,347,730 17,766 740,349 38.76
hardCorals Hard corals 973,555 1,977 31,520 0.76
mangroves Mangroves 89,820 50 5,547 0.07
marineMammals Marine mammals 4,855,260 161 1,183,783 3.81
seabirds Seabirds 23,744,889 991 1,750,076 18.65
seagrasses Seagrasses 311,078 88 12,420 0.24
seaTurtles Sea turtles 447,633 8 152,272 0.35

With a store from before the gap-fill, compare_eov_totals() shows what the fill recovered per EOV:

con_b  <- obis_store_connect(before_path)
before <- calc_eov_totals(con_b)
cmp    <- compare_eov_totals(before, tot)
knitr::kable(
  cmp |> mutate(across(c(records_before, records_after, records_delta), ~ format(.x, big.mark = ",")),
                records_pct = round(records_pct, 1)),
  caption = "EOV totals before and after the WoRMS gap-fill")
EOV totals before and after the WoRMS gap-fill
eov label records_before records_after records_delta records_pct species_before species_after cells_before cells_after
fish Fish 49,045,799 49,347,730 301,931 0.6 17753 17766 738872 740349
hardCorals Hard corals 962,779 973,555 10,776 1.1 1977 1977 31414 31520
mangroves Mangroves 88,688 89,820 1,132 1.3 50 50 5546 5547
marineMammals Marine mammals 4,841,269 4,855,260 13,991 0.3 161 161 1182402 1183783
seabirds Seabirds 18,981,099 23,744,889 4,763,790 25.1 952 991 1338850 1750076
seagrasses Seagrasses 31,360 311,078 279,718 892.0 19 88 2849 12420
seaTurtles Sea turtles 447,497 447,633 136 0.0 8 8 152220 152272

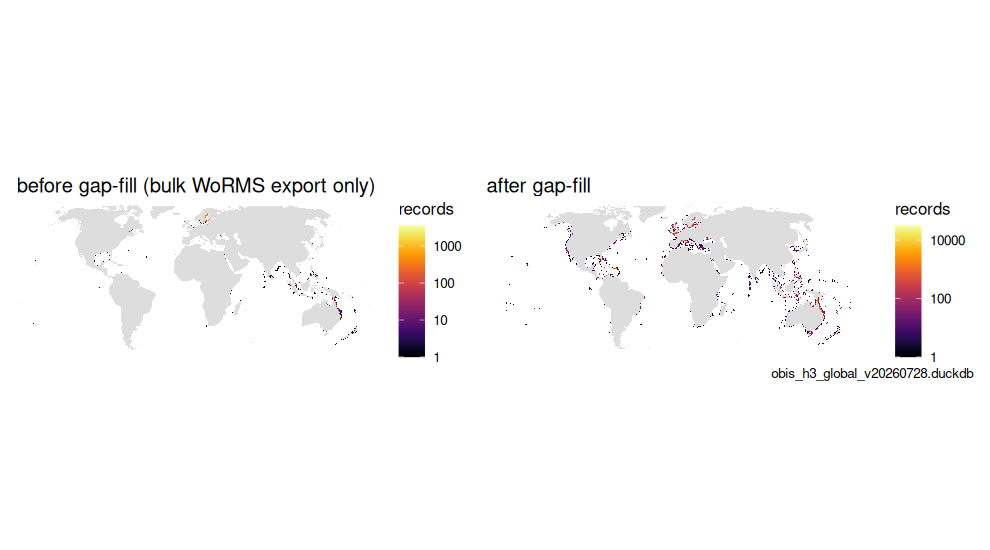

Seagrasses before and after the gap-fill (Fig. 1)

Seagrasses were the EOV most affected: most of their AphiaIDs were among the orphans, so the EOV was nearly empty before the fill.

after_sg <- obis_cell_indicators(con, RES_MAP, eov = "seagrasses")
p_after  <- gmap_cells(after_sg, "n", label = "records", trans = "log10") +
  labs(title = if (has_before) "after gap-fill" else "seagrasses EOV (this store)")
if (has_before) {
  before_sg <- obis_cell_indicators(con_b, RES_MAP, eov = "seagrasses")
  p_before  <- gmap_cells(before_sg, "n", label = "records", trans = "log10") +
    labs(title = "before gap-fill (bulk WoRMS export only)")
  p <- patchwork::wrap_plots(p_before, p_after, ncol = 2) +
    patchwork::plot_annotation(caption = store_label)
} else {
  p <- p_after + labs(caption = store_label)
}
p
plot of chunk fig1

plot of chunk fig1

The seven EOVs: records, ES(50) and coverage (Fig. 2)

obis_cell_indicators() returns every indicator per cell for an EOV at one resolution (H3 3 here, ~12,393 km² per hexagon), reading the precomputed layer when it can. ES(50) is only meaningful where a cell has at least 50 records, so each EOV gets three panels: records, ES(50) masked to eligible cells, and the eligible-cell coverage itself.

eovs <- bind_rows(lapply(EOV_ORDER, function(e) {
  d <- obis_cell_indicators(con, RES_MAP, eov = e)
  if (nrow(d)) cbind(eov = e, d) else NULL
}))
summ <- eovs |>
  group_by(eov) |>
  summarize(cells = n(), records = sum(as.numeric(n)),
            cells_es_eligible = sum(n >= 50), frac_eligible = mean(n >= 50),
            median_es = median(es[n >= 50], na.rm = TRUE), .groups = "drop")
knitr::kable(summ |> mutate(frac_eligible = round(frac_eligible, 3), median_es = round(median_es, 2)),
             caption = sprintf("Per-EOV coverage at H3 resolution %d", RES_MAP))
Per-EOV coverage at H3 resolution 3
eov cells records cells_es_eligible frac_eligible median_es
fish 21481 49347730 7407 0.345 21.99
hardCorals 3556 973555 1006 0.283 17.27
mangroves 235 89820 86 0.366 3.84
marineMammals 18589 4855260 4887 0.263 2.00
seaTurtles 10772 447633 1056 0.098 1.00
seabirds 26361 23744889 9196 0.349 10.54
seagrasses 1133 311078 290 0.256 4.19
for (e in unique(eovs$eov)) {
  d <- filter(eovs, eov == e)
  d$eligible <- as.numeric(d$n >= 50)
  p1 <- gmap_cells(d, "n",  label = "records", trans = "log10") + labs(title = "records")
  p2 <- gmap_cells(d, "es", label = "ES(50)", mask = d$n >= 50) + labs(title = "ES(50), n ≥ 50")
  p3 <- gmap_cells(d, "eligible", label = "ES-eligible") + labs(title = "coverage (n ≥ 50)")
  p  <- patchwork::wrap_plots(p1, p2, p3, ncol = 3) +
    patchwork::plot_annotation(title = obis_eov_label(e), caption = store_label)
  save_fig(p, paste0("fig2_", e), width = 15, height = 4.5)
  cat("\n\n### ", obis_eov_label(e), "\n\n", sep = "")
  print(p)
}

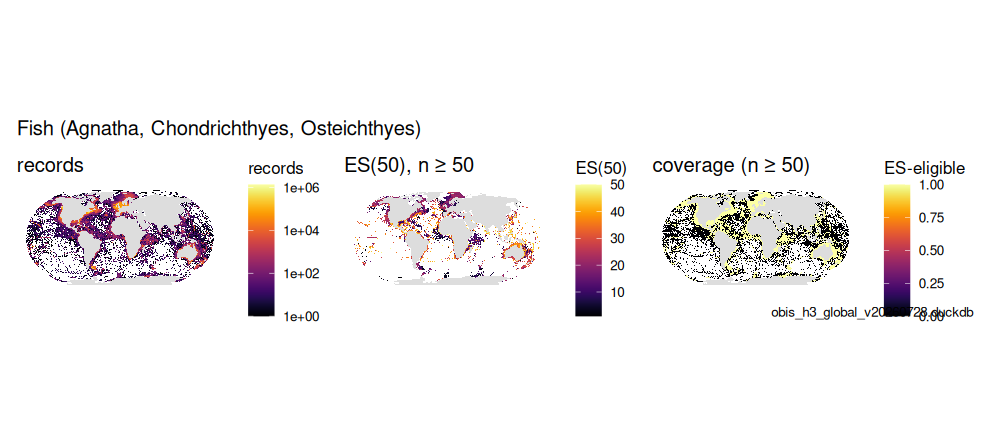

Fish (Agnatha, Chondrichthyes, Osteichthyes)

plot of chunk panels

plot of chunk panels

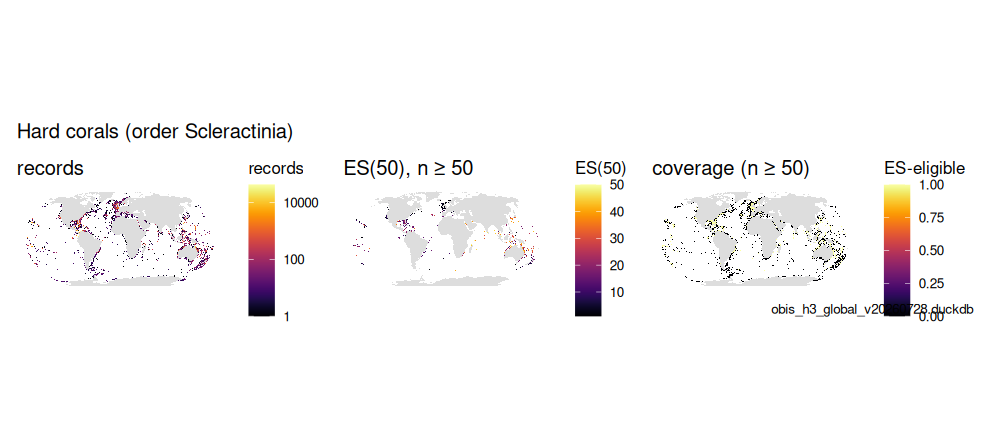

Hard corals (order Scleractinia)

plot of chunk panels

plot of chunk panels

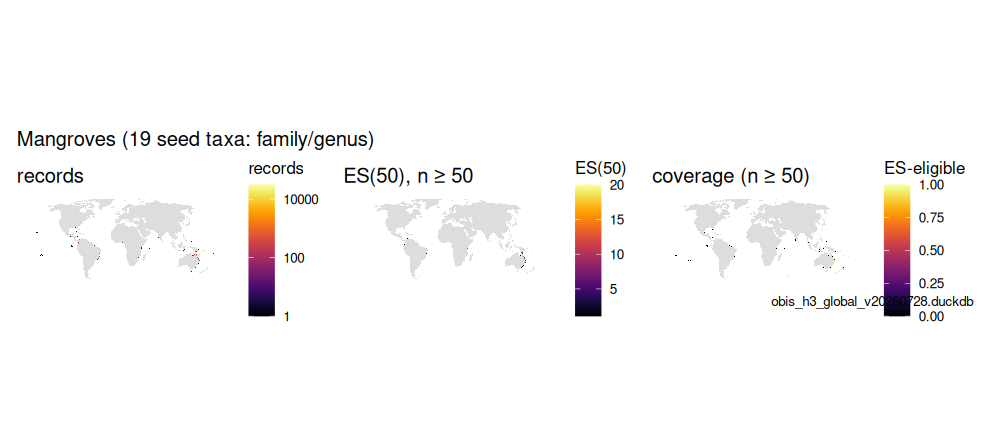

Mangroves (19 seed taxa: family/genus)

plot of chunk panels

plot of chunk panels

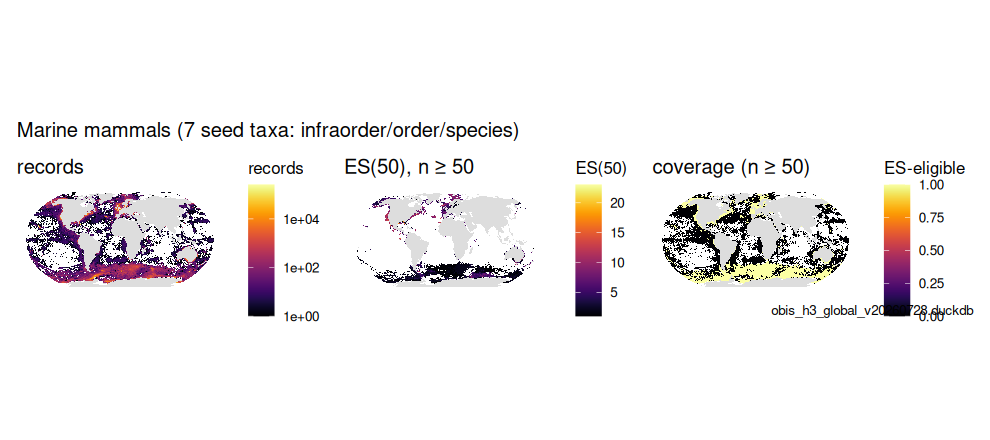

Marine mammals (7 seed taxa: infraorder/order/species)

plot of chunk panels

plot of chunk panels

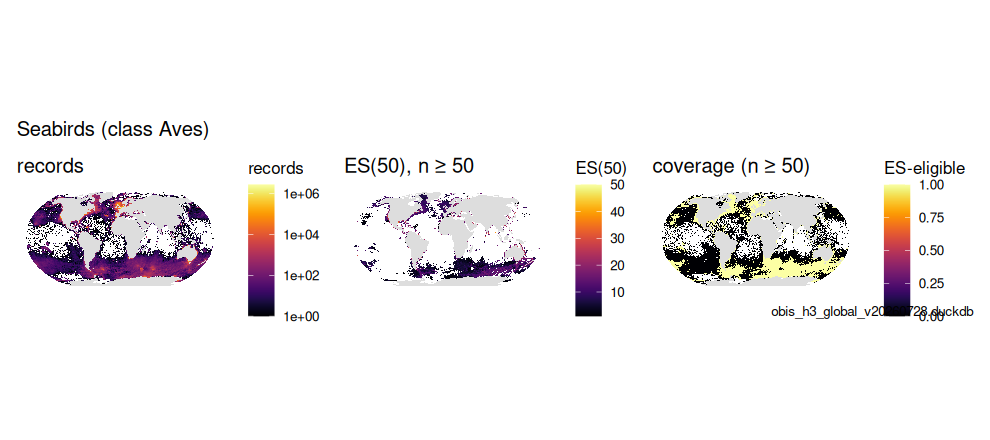

Seabirds (class Aves)

plot of chunk panels

plot of chunk panels

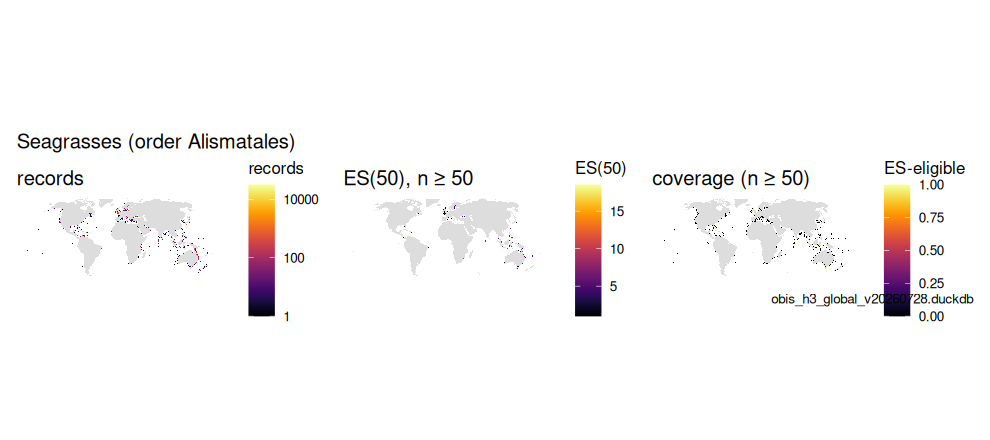

Seagrasses (order Alismatales)

plot of chunk panels

plot of chunk panels

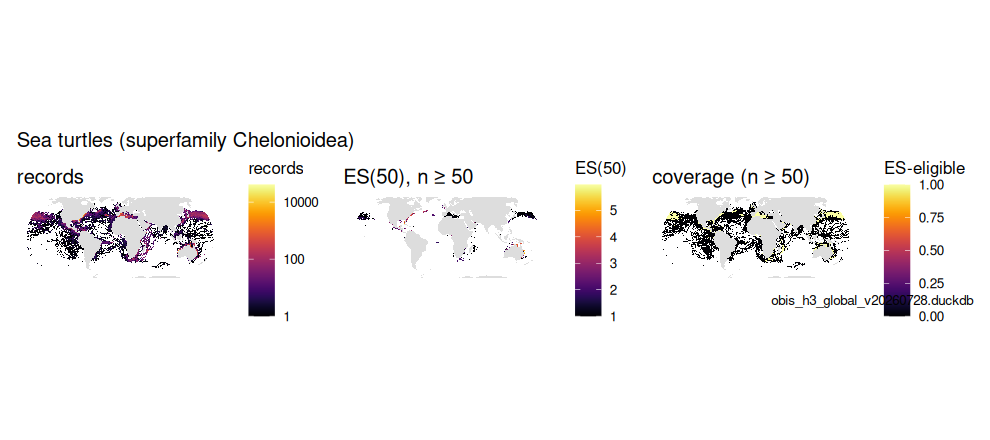

Sea turtles (superfamily Chelonioidea)

plot of chunk panels

plot of chunk panels

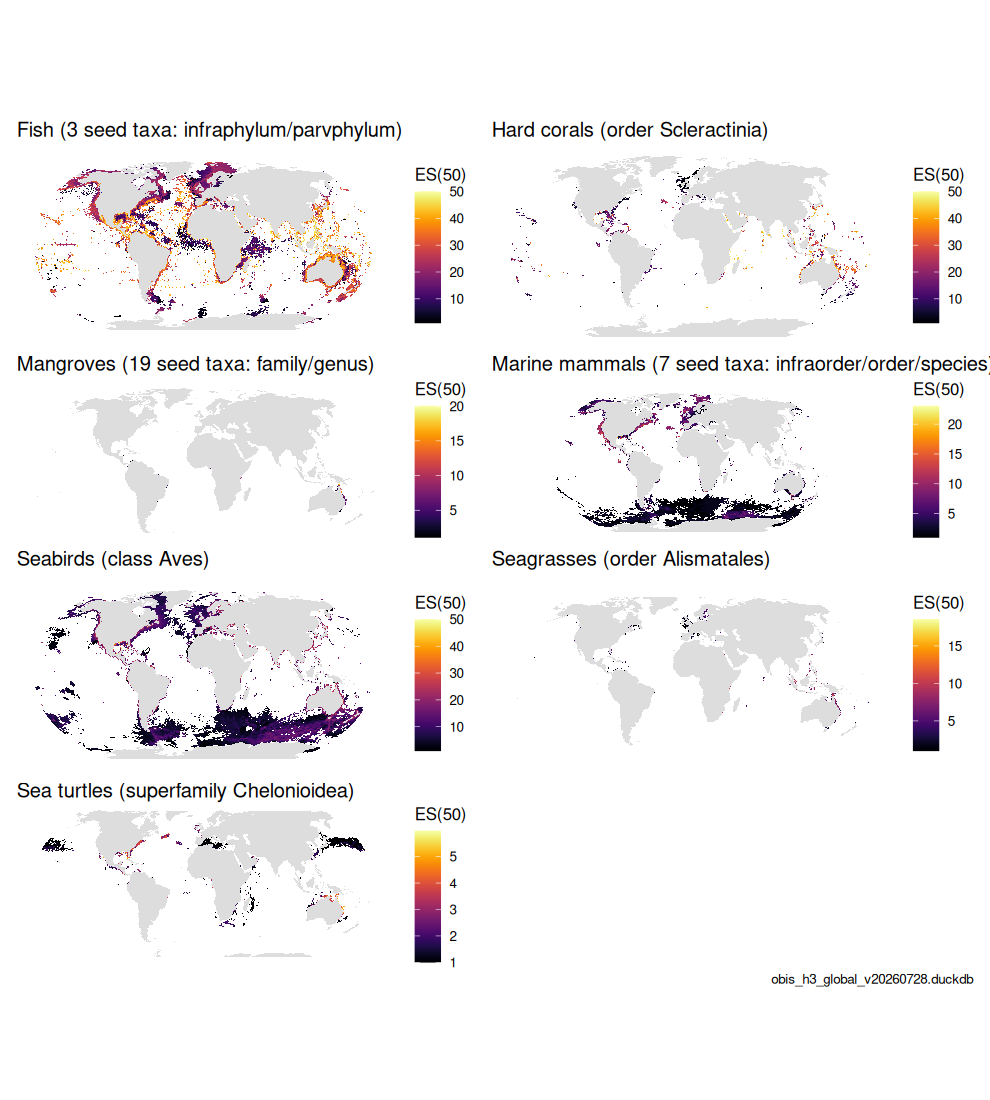

ES(50) across all EOVs

plots <- lapply(unique(eovs$eov), function(e) {
  d <- filter(eovs, eov == e)
  gmap_cells(d, "es", label = "ES(50)", mask = d$n >= 50) + labs(title = obis_eov_label(e, max_taxa = 1L))
})
p <- patchwork::wrap_plots(plots, ncol = 2) + patchwork::plot_annotation(caption = store_label)
p
plot of chunk all-es50

plot of chunk all-es50

DBI::dbDisconnect(con, shutdown = TRUE)
